The open-arm design awning with the most exclusive pivot mechanism on the market. Retracted position always horizontal regardless of the set inclination, minimalist lines and the greatest tilt capacity in its category — up to 80° with motor. Red Dot Design Award 2009.
Retracted position always horizontal regardless of the set inclination. The result is an impeccable minimalist line and a neat appearance in any position.
The greatest tilt angle in its category. With motorised operation, continuous adjustment between 5° and 80°. Ideal for roofs and projecting balconies where very vertical protection is required.
Defined mounting zone on both sides — suitable for spanning wide distances without intermediate supports. Compatible with wall and ceiling fixing.
Available from 178 cm to 500 cm width. Millimetre-precise made-to-measure manufacture with fabrics from the Markilux Sunsilk and Sunvas ranges.

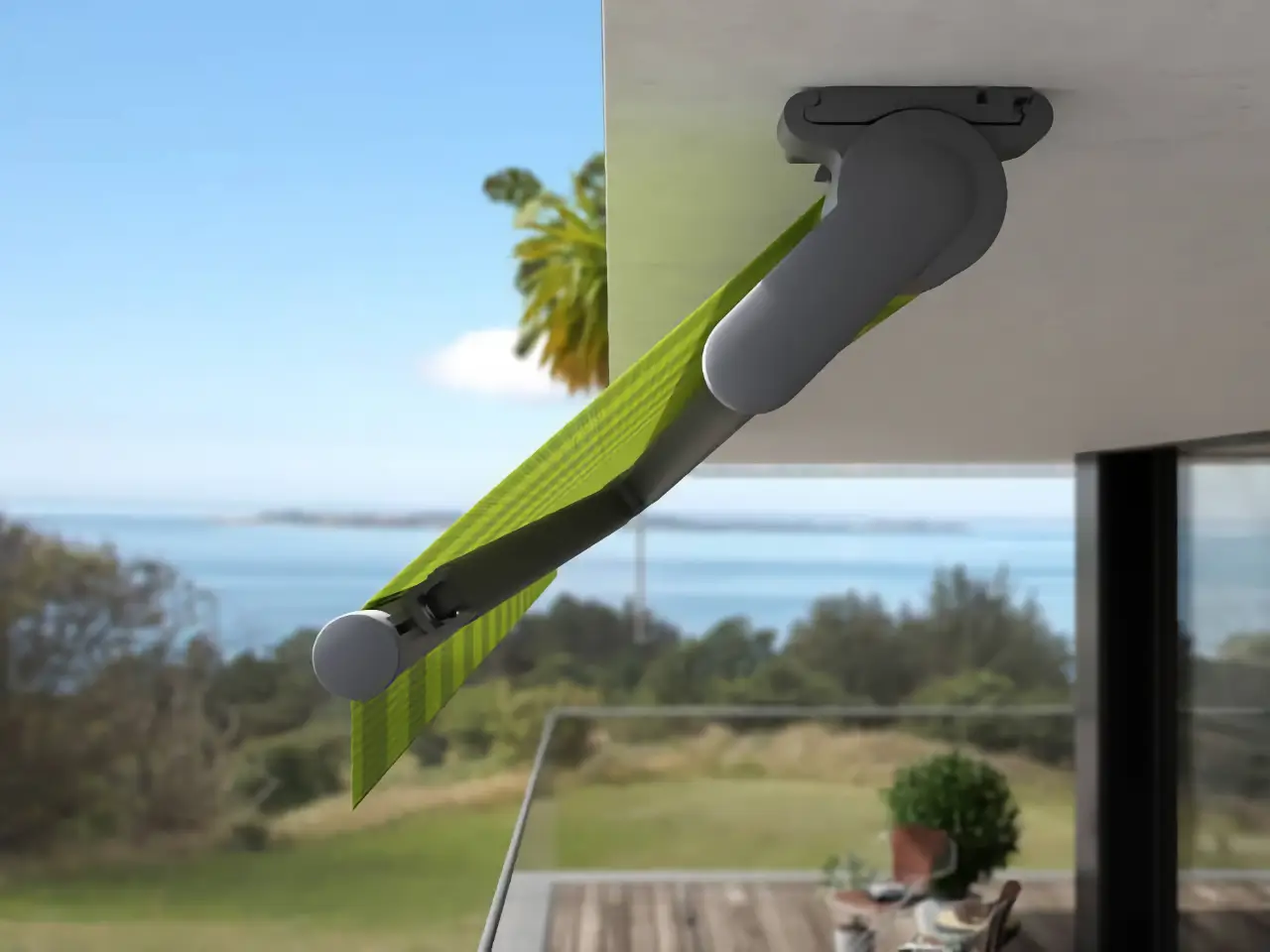

Extruded aluminium profiles with die-cast aluminium articulation pieces. Stainless steel connecting elements in bronze bushings with PTFE coating, virtually maintenance-free.
Available with io remote-controlled motor 868 MHz and RTS motor 433 MHz. Integrable with home automation control systems and weather sensors.
| Product type | Open-arm awning without cassette |
|---|---|
| Minimum width | 178 cm |
| Maximum width | 500 cm |
| Maximum projection | 300 cm |
| Profile dimensions | 286 mm (depth) × 122 mm (height) |
| Tilt with motor | 5°–80° |
| Tilt with crank | 5°–25° (front) · 26°–55° (rear) |
| Fixing | Wall · Ceiling |
| Wind resistance | Class 2 — 28–37 km/h (Beaufort 5) |
| Operation | Standard crank · io motor 868 MHz · RTS motor 433 MHz |
| Available fabrics | Sunvas · Sunsilk · Perla · Perla FR |
| Super-shadow | Not available |
| Coupled awning | Not available |
| Design awards | Red Dot Design Award 2009 |
| Manufacture | Markilux — Germany · Made to measure on order |
| Official distributor BCN/MAD | Cortinsa |
Our technical team visits, measures and installs in Barcelona and Madrid. Free no-obligation quote.
The Markilux 930 is an open-arm cassette-free awning that stands out for its patented rotation mechanism and its capacity for inclination up to 80° with motorised operation, the greatest in its category. Its self-supporting construction with a defined external mounting zone on both sides makes it the ideal solution for overhanging roofs and balconies where large spans must be bridged without intermediate supports. At Cortinsa we are official Markilux distributors in Barcelona and Madrid and install the 930 to measure with manufacturer’s warranty.
The most distinctive feature of the Markilux 930 is its exclusive rotation mechanism: regardless of the adjusted inclination, the awning always retracts in the horizontal position. This guarantees minimalist lines and an impeccable appearance whether the awning is retracted or extended. It is a solution particularly valued in contemporary architecture where the visual clarity of the façade is a priority. This design earned it the Red Dot Design Award 2009.
With motorised operation, the Markilux 930 allows the inclination to be adjusted continuously between 5° and 80°. With a front crank the range is 5° to 25°, and with a rear crank 26° to 55°. This flexibility makes it particularly suited to roof installations where a very vertical position is needed to block low sun or act as a visual screen. No other cassette-free awning on the market offers this degree of inclination.
The Markilux 930 is manufactured to measure from a minimum projection of 178 cm up to a maximum projection of 500 cm, with a reach of up to 300 cm. The profile has a depth of 286 mm and a height of 122 mm. The articulated arms incorporate die-cast aluminium parts with stainless steel connecting elements in bronze bushings with a Teflon coating, requiring virtually no maintenance. The force transmission for fabric tensioning is achieved by means of a twin chain of round steel links with anti-corrosion protection.
At Cortinsa we install the Markilux 930 in Barcelona, Madrid and the metropolitan area, with a technical survey visit, bespoke manufacturing and installation by our own team. Fixing can be to a wall or ceiling depending on the available structure. If you are looking for a cassette-free open-arm awning with an award-winning design and free inclination, request your free, no-obligation quote.
The Markilux 930 is an open awning without cassette, featuring a patented rotation mechanism that guarantees a consistently horizontal stowed position regardless of the adjusted inclination. It stands out for its motor-driven tilt capacity of up to 80° and its self-supporting construction, suitable for ceilings and projecting balconies.
With motorised operation, the Markilux 930 reaches a maximum inclination of 80°, the largest angle in its category. With a front crank the range is 5° to 25°, and with a rear crank 26° to 55°.
The Markilux 930 is custom-made from a minimum projection width of 178 cm up to a maximum of 500 cm, with a reach of up to 300 cm. The profile has a depth of 286 mm and a height of 122 mm.
No. The Markilux 930 is an open awning without a cassette. The fabric remains visible when the awning is retracted. Its distinguishing feature compared to other open awnings is the patented rotation mechanism, which always guarantees a horizontal retracted position and minimalist lines.
Yes. The Markilux 930 is available with an io remote-controlled 868 MHz motor and an RTS 433 MHz motor, compatible with remote controls and home-automation systems. Motorisation is especially recommended to take advantage of the maximum 80° inclination, which is only available with motorised operation.
Cortinsa installs the Markilux 930 in Barcelona, Madrid and the surrounding metropolitan area. Fixing can be wall-mounted or ceiling-mounted. Our technical team carries out the measurement visit, bespoke manufacturing and installation using our own staff, with no subcontractors.
