Markilux Style Pergola — Textile Pergola | BIM File

The Markilux Pergola Style is a contemporary-design textile pergola with an aluminium structure and motorised retractable canopy, aimed at luxury residential projects and high-end outdoor spaces. Compatible with LED lighting and outdoor heating. BIM file in Revit (.rfa) and IFC format for direct project specification.

Inicia sesión para descargar

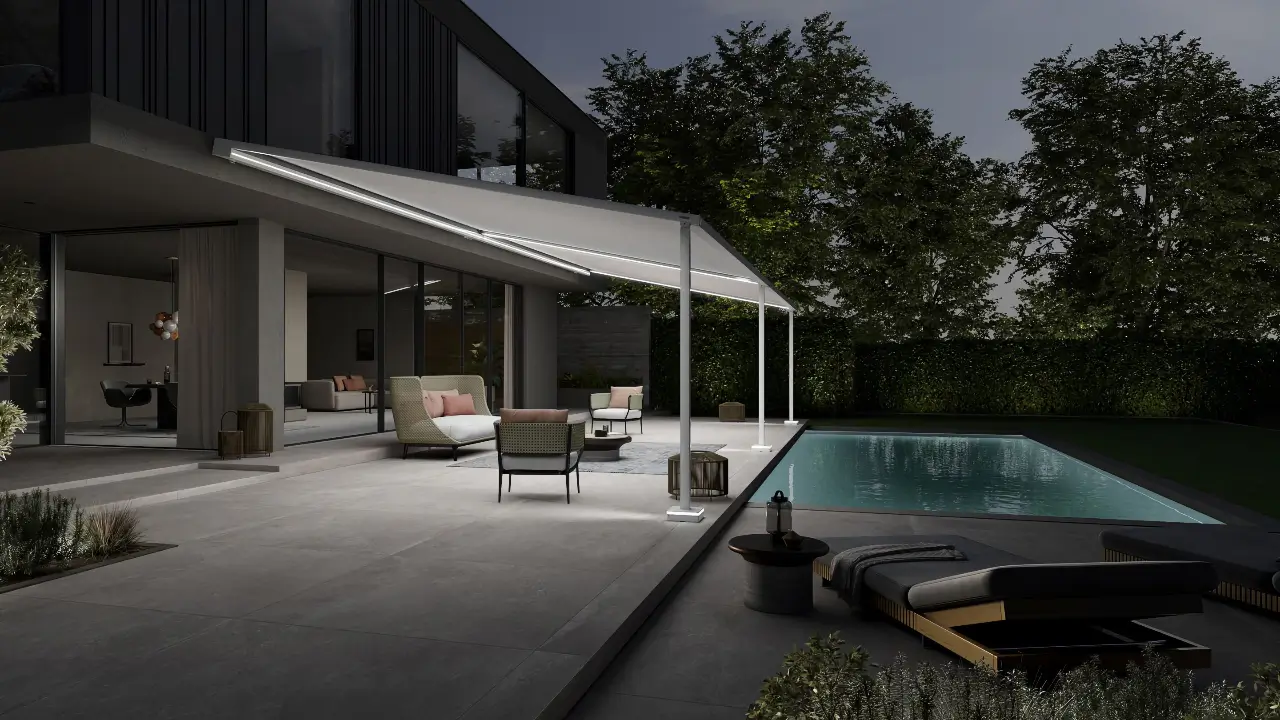

Markilux style textile pergola

The Markilux Pergola Style is a contemporary-design textile pergola with an aluminium structure and motorised retractable canopy, aimed at luxury residential projects and high-end outdoor spaces where the aesthetic of the system is as important as its technical performance. It combines premium materials with a modern-profile structure.

Compatible with integrated LED lighting and outdoor heating systems to extend use of the space throughout the year. Integrable into high-end home automation and smart-home systems.

Cortinsa, official installer of Markilux in Barcelona and Madrid, makes available to professionals the BIM file for the Markilux Pergola Style in Revit (.rfa) and IFC formats, with parametric geometry and object properties for documentation compliant with the CTE and LEED and BREEAM certifications. Download it free from the Cortinsa BIM Library or discover all the details of the Markilux Pergola Style.

Related products

Related products

FAQ

Which software can I use these BIM files with?

The Revit file (.rfa) is compatible with Autodesk Revit 2019 or later. The IFC format is universal and works with ArchiCAD, Vectorworks, Navisworks, BIMcollab, and any viewer or software that supports the IFC 2×3 standard.
The files include parametric geometry with the actual dimensions of the system in its main width and projection configurations, together with object properties (Pset) for technical project documentation.
Yes. The files include the property data required for documentation compliant with the CTE and are compatible with the requirements of LEED and BREEAM certifications.
No. With a free registration you get unlimited access to all BIM models available in the library.
Yes, within the scope of the project. The files are free for professional use for specification in architecture, interior design and construction projects.
Yes. When Markilux updates its technical documentation, we update the library files. If you need an updated version of a specific model, contact our technical team.
