Download the BIM files in Revit (.rfa) and IFC format with real geometry to specify this sun-protection system directly in your project.
Access technical data sheets with certifications and energy efficiency data to include in the project report.
Consult the CAD construction details with installation sections, fixings and tolerances for on-site installation.

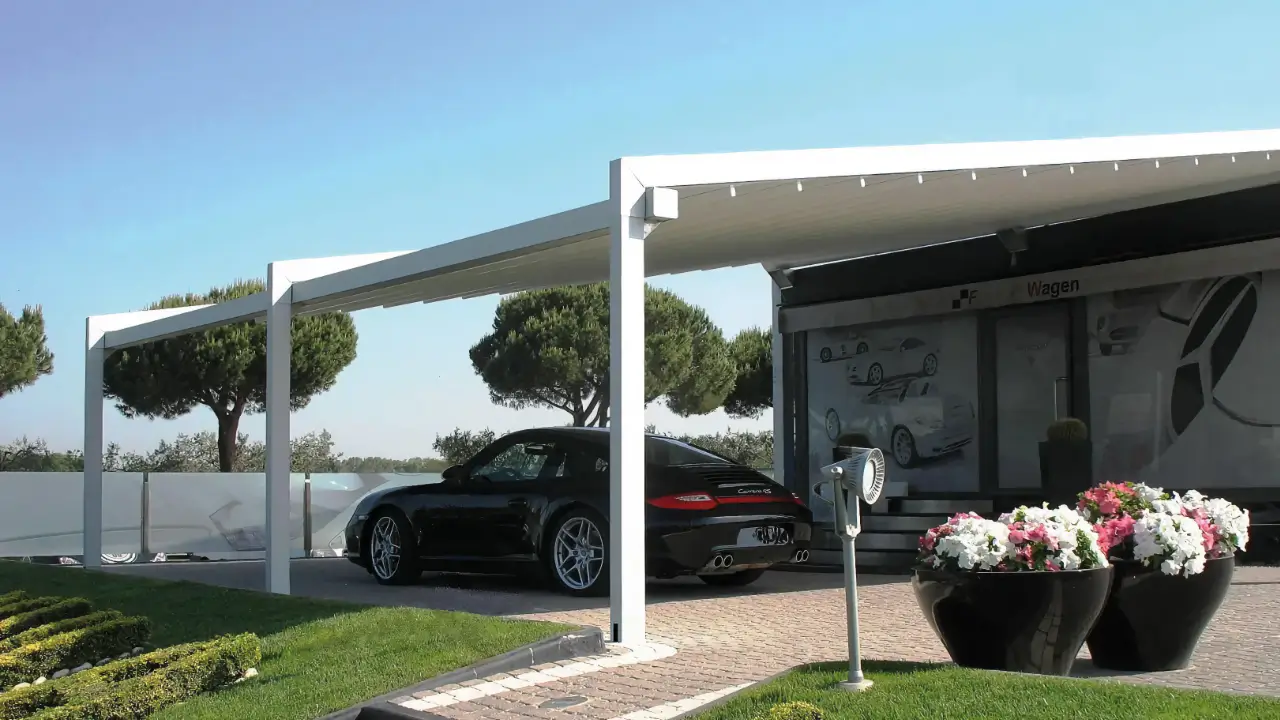

The Pratic Evo is the retractable-canopy aluminium pergola that takes the concept of integrated design to its limit: upright and beam merge into a single component, eliminating the visible joint between vertical and horizontal profile that characterises conventional pergolas. The result is a structure of absolutely continuous lines and a clean profile from every angle, which fits naturally into contemporary architecture projects where every detail matters.
Most aluminium pergolas with a canopy join the upright and the load-bearing profile via a visible mechanical connection. In the Evo, both pieces merge into a single profile component that integrates the upright and the beam without any discontinuity. This design detail, patented by Pratic, reduces the visual complexity of the structure and gives the whole assembly the appearance of a single piece — something particularly valued in installations where the pergola forms part of the architectural design of the space.
The Evo’s PVC canopy slides and packs away into a compact space with integrated motorisation, allowing a complete transition from full cover to full opening in a single movement. The rainwater drainage system integrated into the uprights channels light rain to the outside. With up to 1300 cm in width and 900 cm in depth in a three-module configuration, the Evo is one of the highest-coverage aluminium pergolas with a canopy in the Pratic catalogue.
The Pratic Evo is installed fixed to the wall in one-, two-, or three-module configurations with 10 × 15 cm pillars. Compatible with LED Line lighting on the canopy battens, the modular Set platform, and home-automation systems with Google Assistant, Amazon Alexa, and light, rain, and wind sensors. Made to measure, fully pre-assembled at the factory, and Qualicoat Seaside Class 2 powder-coated.
| Cover type | Motorised retractable PVC canopy |
|---|---|
| Installation | Wall-mounted |
| Maximum width (3 modules) | 1300 cm |
| Maximum depth (3 modules) | 900 cm |
| Maximum height | 270 cm |
| Pillars | 10 × 15 cm |
| Guide profile | 10 × 16 cm |
| Operation | Motorised / manual |
| Drainage | Integrated into pillars |
| Windy Series | No |
| Glass Series | No |
| Set compatible | Yes |
| Powder coating | Qualicoat Seaside Class 2 |
| Manufacture | Pratic — Italy · Made to measure |
| Official distributor BCN/MAD | Cortinsa |
LED Line on canopy battens (white or RGB), Double roof (canopy interior finish in three shades), Set (integrated aluminium platform), Aluminium roof cover (protection for the rolled canopy), Google Assistant and Amazon Alexa home automation, light / rain / wind sensors.
RAL 9016 Blanco sablé · RAL 1013 Avorio sablé · RAL 9006 Gris sablé · RAL 9010 Blanco semilucido · RAL 1013 Avorio semilucido · RAL 9006 Aluminio brillante opaco · Grigio ferro · Corten · Tiger Coating · Custom RAL (Class 2). Plastic parts: Blanco, Avorio, Grigio ferro, Corten — not powder-coatable.
The Pratic Evo aluminium pergola is the solution from the Pratic range for projects where structural design is as important as technical performance. With upright and rafter cast as a single component — the design differentiator that sets the Evo apart from other aluminium pergolas with canopy on the market — the Evo offers a structure of absolutely continuous lines that integrates naturally into any architectural setting. Custom-manufactured in Italy with Qualicoat Seaside Class 2 powder coating, the Evo is one of the highest-capacity aluminium pergolas in the Pratic catalogue, reaching up to 1300 × 900 cm in a three-module configuration. At Cortinsa we install the Pratic Evo in Barcelona and Madrid with a technical survey, custom fabrication, and installation by our own team.
The motorised retractable canopy of the Pratic Evo slides along the guide profiles and packs away at one end in a single movement, leaving the space completely open to the sky whenever conditions allow. With a maximum projection of 900 cm in a three-module configuration, the Evo is particularly well suited to long restaurant terraces, pool areas, and private residential courtyards where generous coverage is required without intermediate posts. The integrated drainage channels within the uprights ensure that light rainfall does not affect use of the space with the canopy extended. For projects requiring technical specification, our BIM Library contains Revit (.rfa) and IFC files for the Pratic range.
The Pratic Evo, the Pratic Mito, and the Pratic Level are the three models within the same family of aluminium pergolas with canopy in the Pratic catalogue, each with a distinct profile. The Evo is distinguished by its single-component design — upright and rafter cast without discontinuity — and reaches the same maximum projection of 900 cm as the Mito. The Mito and the Level are compatible with the Windy Series of cased vertical awnings and the Glass Series of perimeter glazing, options that the Evo does not support. If the project requires integrated lateral enclosure, the Mito or the Level are the appropriate alternatives; if the project prioritises structural design and large-projection coverage without the need for enclosures, the Evo is the right choice.
Cortinsa installs the Pratic Evo aluminium pergola in Barcelona, Madrid, and the surrounding metropolitan area, with a technical measurement survey, custom fabrication, and installation by our own technical team. With more than 20 years of experience in pergolas and technical sun-protection systems for residential, HORECA, and contract projects, we manage the complete project from the initial visit through to the commissioning of the home-automation systems.
The Pratic Evo reaches a maximum width of 1300 cm and a maximum depth of 900 cm in a three-module configuration, with a maximum height of 270 cm. It is one of the largest-capacity aluminium pergolas with a fabric canopy in the Pratic catalogue.
